Data Conveyer Tutorial
Lesson 3: Progress Reporting

This lesson assumes that you have completed Lesson 2 of this Tutorial. It is expected to take about 5 minutes.

Data Conveyer can provide progress reporting, which will be the topic of this lesson.

First, let’s slow down our TransformRecordToSayHello function as if some complex, time consuming processing is taking place.

Step 3.1 Add the following line immediately before the return statement in the TransformRecordToSayHello function:

Thread.Sleep(15);

Step 3.2 The above statement refers to System.Threading names. Add a corresponding using directive to the top of the Program.cs module.

using System.Threading;

Step 3.3 Select Debug → Start Debugging (F5) to build and execute the project.

Since now the process takes some time to complete, you will see this screen …

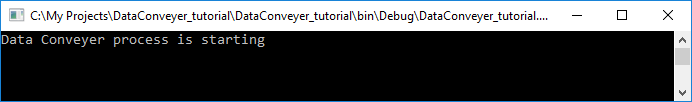

Process is Starting

… for about 3 seconds before the confirmation of successful completion eventually comes up:

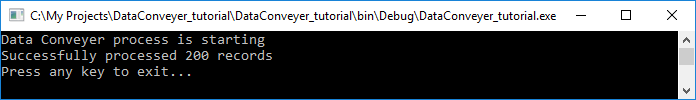

Successful Completion

Not the best user experience. Let’s provide more immediate feedback.

Step 3.4 Add the following 3 lines to the OrchestratorConfig object initializer near the top of the Main method:

ReportProgress = true,
ProgressInterval = 1,
ProgressChangedHandler = (s, e) => { if (e.Phase == Phase.Output) Console.Write($"\rProcessed {e.RecCnt.ToString()} records so far..."); },

Notice that the ProgressChangedHandler setting is assigned a so-called lambda expression, which is a special notation for an anonymous function. Lambda expressions can be assigned to settings that are of a delegate type (function) instead of assigning named functions. In this case s and e are function parameters, e being of type ProgressEventArgs, which supplies arguments to our handler, such as Phase and RecCnt.

Data Conveyer features several settings that are of a delegate type. For example, the TransformRecordToSayHello function introduced in Lesson 2 is a named function assigned to the RecordboundTransformer setting. Instead of using this named function, a lambda expression could’ve been assigned instead: RecordboundTransformer = r => { ... }, where r is of IRecord type.

Step 3.5 Add the following line after the block of code that executes the Data Conveyer process (the one with the ExecuteAsync method call), i.e.immediately before completion status gets evaluated:

Console.WriteLine(" done!");

Step 3.6 Select Debug → Start Debugging (F5) to build and execute the project.

Now the progress is being reported in real-time, like this:

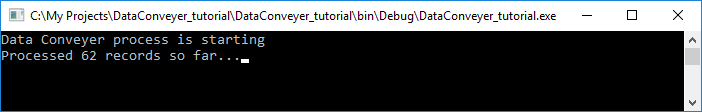

Processing Progress

Upon completion, the screen will look like this:

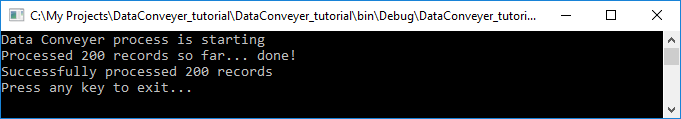

Processing Complete

Step 3.7 Change the ProgressInterval property value from 1 to 10 (ProgressInterval = 10,) and observe how the screen is being refreshed upon execution. Experiment with different values of the ProgressInterval property.

You may notice that depending on the interval value, the last “Processed … records so far…” message is not the same as the total records processed. This is expected and can be addressed by handling another event raised by Data Conveyer, namely the PhaseFinished event.

Step 3.8 Change the ProgressInterval property value back to 1 (ProgressInterval = 1,).


End of Lesson 3.

Proceed to Lesson 4: Asynchronous Execution (~5 mins).
